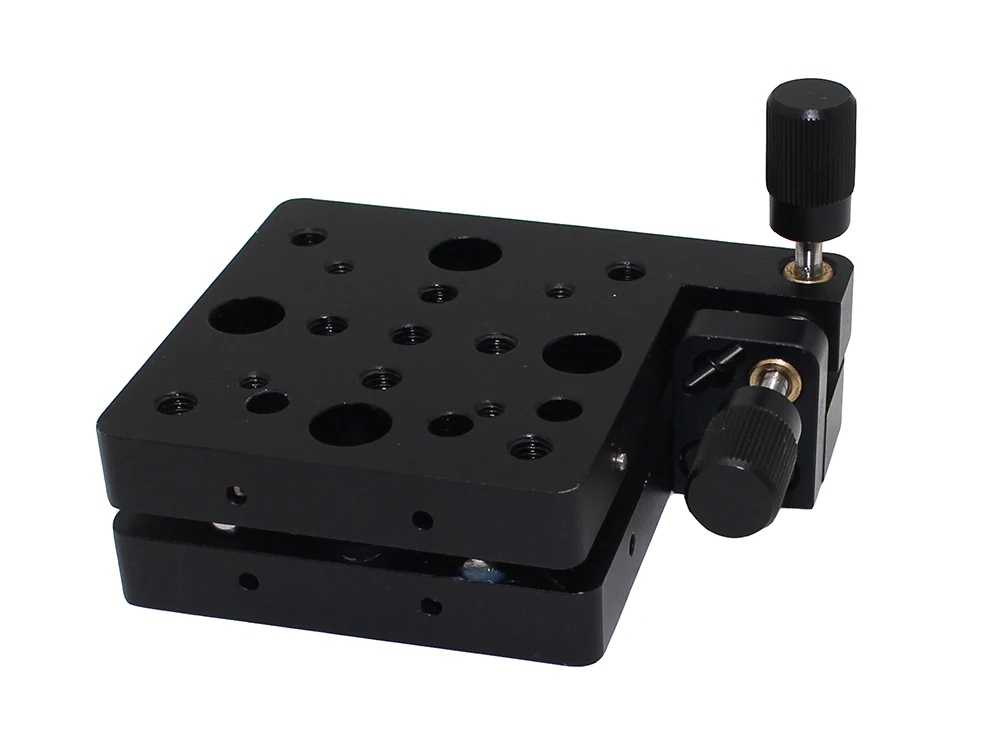

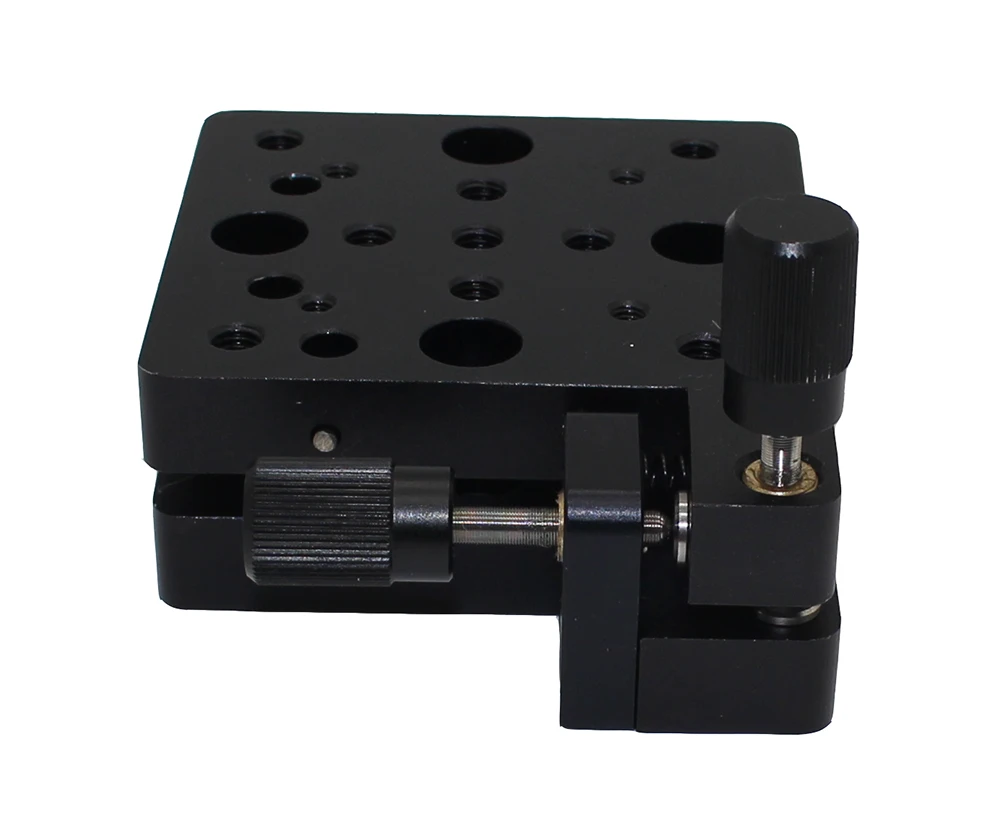

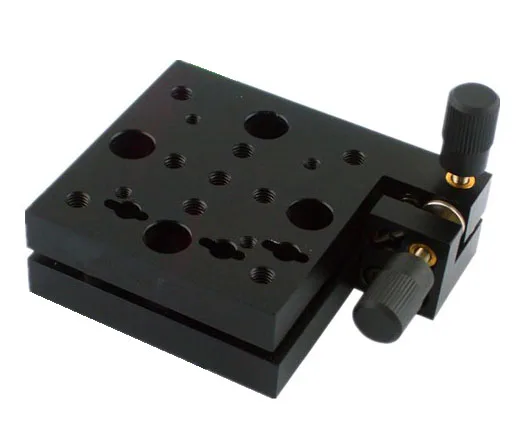

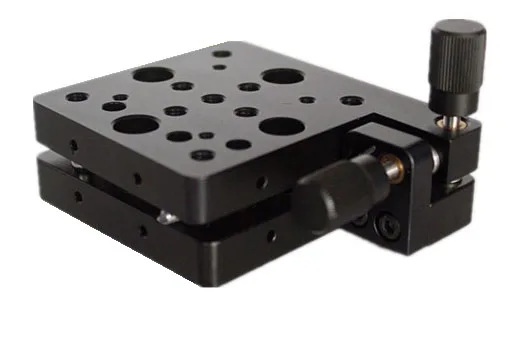

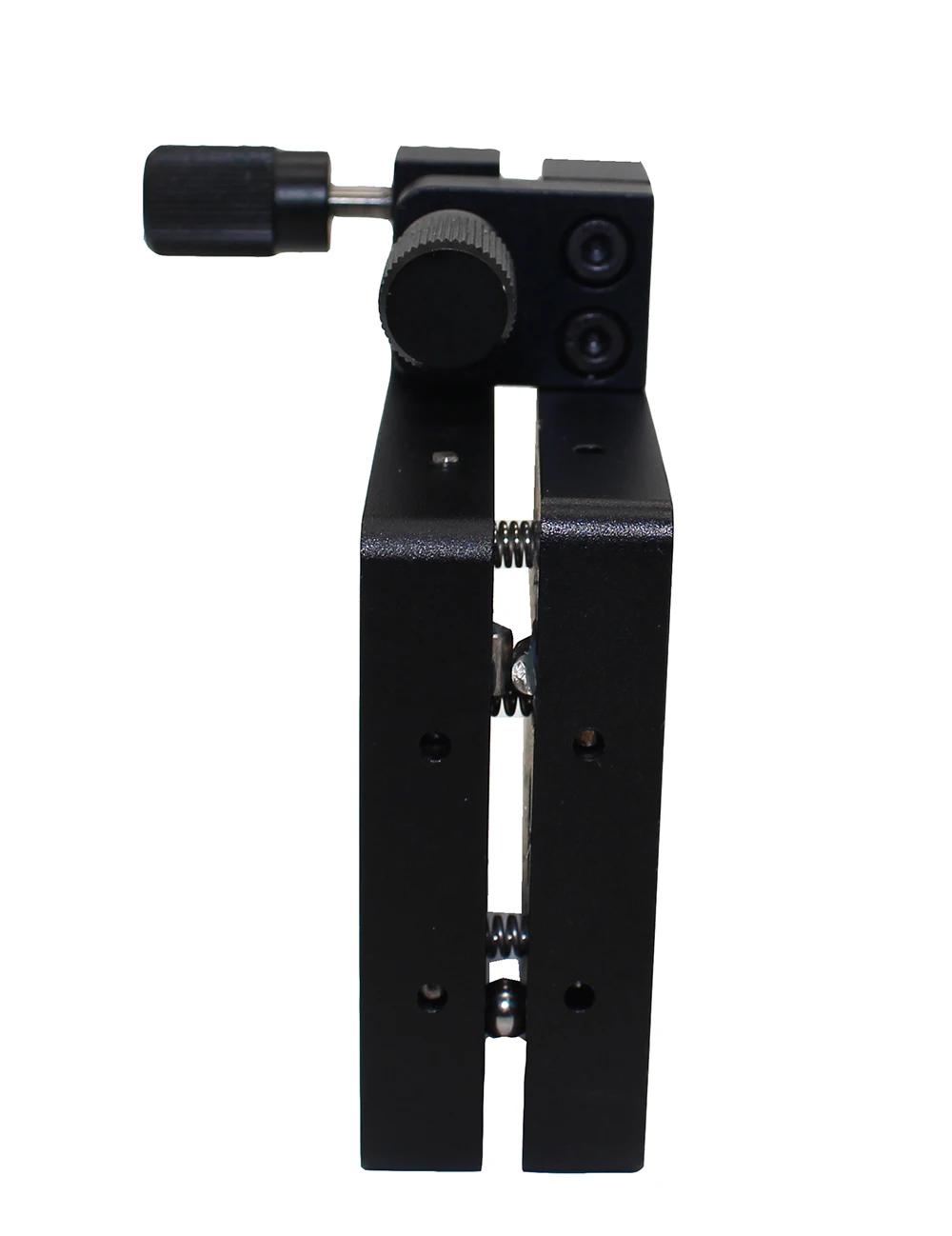

Precision Rotary Tilt Table Thread Secondary Angle Stage Optical Rotation Angle Platform 73*68mm

Precision Rotary Tilt Table Thread Secondary Angle Stage Optical Rotation Angle Platform 73*68mm
  • SellerH-king Technology Co. Ltd
  • Price ofUS $89.99 piece
  • Your PriceUS $89.99piece
  • ShippingFree Shipping
  • You SavesUS $0piece0% off
  • Ratings3.5 (5192)

Product Details

Shopping for a Precision Rotary Tilt Table Thread Secondary Angle Stage Optical Rotation Angle Platform 73*68mm with cheap price? Read about features, types, and other must-know topics in our Precision Rotary Tilt Table Thread Secondary Angle Stage Optical Rotation Angle Platform 73*68mm buying guide to make an informed choice. Order best Precision Rotary Tilt Table Thread Secondary Angle Stage Optical Rotation Angle Platform 73*68mm Look for the Precision Rotary Tilt Table Thread Secondary Angle Stage Optical Rotation Angle Platform 73*68mm package that is best for you. Make a price comparison, discount promo, or free shipping before shopping.

Feature:

  1. Provides dual axis tilt and yaw adjustment
  2. Fine-tuning the thread drive, disc spring reset, good stability
  3. Standard hole pitch connection holes on the upper and lower parts for easy combination with other series

Parameter:

  1. Table size: 73*68mm
  2. Drive mode: fine-tuning the thread, the auxiliary double-shaft drive
  3. Function: θX , θZ 2D pitch and yaw adjustment
  4. Adjustment range: ±4° pitch and ±2° deflection
  5. Countertop minimum adjustment range: 5\'
  6. Load: 2kg
  7. Self weight: 0.33kg
  8. Material: Hard aluminum
  9. Surface treatment: anodized black

312

Include:

1 x Precision Rotary Tilt Table
